L 25 Multi Function Marine Survey USV

L 25 Multi Function Marine Survey USV
L 25 Multi Function Marine Survey USV
  • Stock: In Stock
  • Model: L 25
  • Ex Tax:
  • Parameters
    Automatic Payload LifterYes
    Collision Avoidance SystemSide light/AIS/Navigation Radar/4*HD Camera
    Communication Range> 10 Km
    Draft40 cm
    Endurance65hr @ 4kn
    Multi MissionsYes
    Operation Sea StateSS 3
    Payload200 kg
    Video MonitoringYes
    Hull MaterialAluminum Alloy
    Dimension(L)7.5 m *(W)2.8 m*3m(H)
    Weight2400 kg
    PropulsionPropeller X 2 +Outboard Disel Engine 50HP X 2
    Max. Speed10 knots

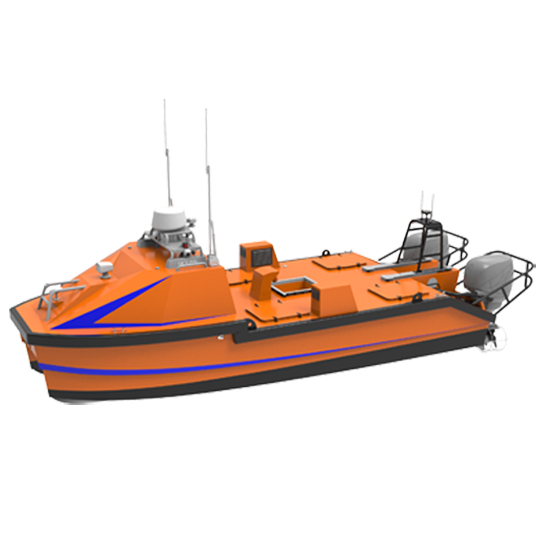

    L-25 Multi-function Marine Survey USV
    The L25 USV can carry up to 200kg of hydrographic & geophysical instruments to conduct multi-purposed physical oceanographic surveys and biological environment monitoring on the deep sea.
    Buy Now
    Outstanding Payload Capacity
    Wider deck, bigger payload, supporting multiple equipment work simultaneously for underwater inspection, hydrography survey and oceanography survey.
    Buy Now
    Longer Endurance, High Efficiency
    Standard range is 65h@4kns, extendable to 130h@4kns, significantly surpassing similar-sized manned boats.
    Buy Now
    Advanced Design for Easy Configuration
    • Small A-frame and winch support towing survey, cable length up to 200 meters;
    • Foldable lifter protects instruments wet ends and offers greater payload capacity.
    Buy Now
    Stable Working Condition for Survey
    • Excellent stability,roll range smaller than 10 degrees in SS4.
    • Catamaran design significantly reduces swaying and spray foam, providing stable and quiet working condition for acoustic equipment
    • Low noise electric Plug-in thruster, reduces signal-to-noise ratio by 20%
    Buy Now
    Autonomous Control with High Precision
    • Radar, HD camera and AIS sensing enabling highly sensitive environmental perception
    • Dual engine and dual propeller providing large torque, L25 can rotate in situ
    • Able to navigate closely around constructions for zoom-in inspection
    • Autonomous navigation algorithm, advanced obstacle avoidance algorithm and propulsion control algorithm applied to minimize risk of collision
    Buy Now
    Auto Return
    During a mission, if the L25 loses communication or is about to run out of power, it can automatically sail back to the designated location to avoid getting lost on the sea.
