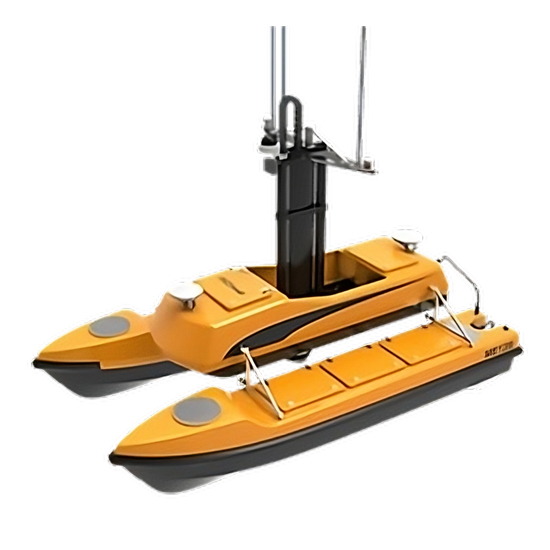

ME 120 Hydrographic Unmanned Surface Vehicle

ME 120 Hydrographic Unmanned Surface Vehicle
ME 120 Hydrographic Unmanned Surface Vehicle
  • Stock: In Stock
  • Model: ME 120
  • Ex Tax:
  • Parameters
    Automatic Payload LifterYes
    Battery PackWeight 60 kg
    Collision Avoidance SystemMillimeter Wave Radar
    Communication RangeAutopilot: 5 km
    Draft45 cm
    Multi MissionsYes
    Payload45 kg
    Remote Control FrequencyRange: 1 km
    Survey Speed4 knots (2 m/s)
    Video MonitoringYes
    Hull MaterialCarbon Fiber
    Dimension(L)2.5 m *(W)1.4 m*(H)0.75m
    Weight150 kg
    PropulsionDuct type thruster
    Max. Speed10 knots (5 m/s)
    Battery Life8h @ survey speed
    Hydrographic Unmanned Surface Vehicle

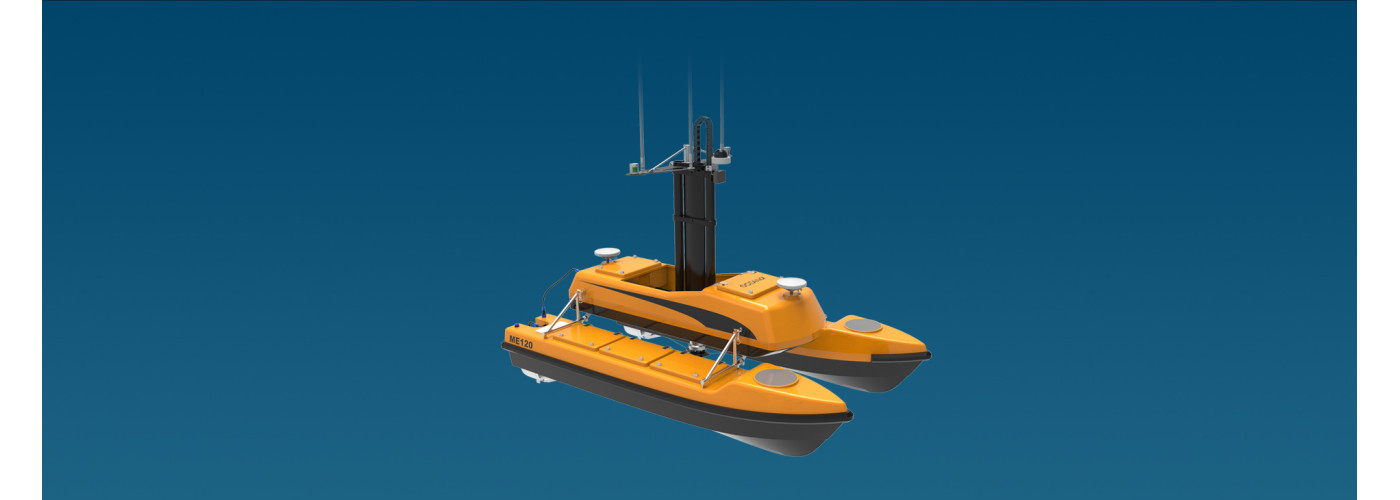

    Convertible catamaran USV platform for hydrographic survey
    Buy Now

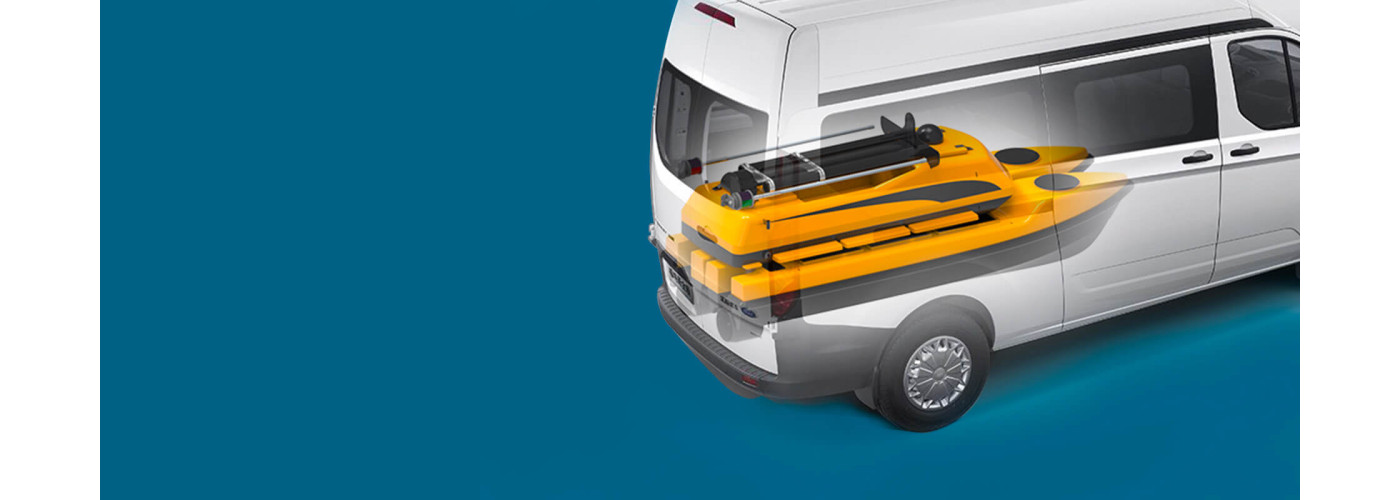

    Quick assembly and easy transportation
    The ME120 utilizes a detachable catamaran design, making it easy for van transportation and for two people to assemble and disassemble.
    Buy Now

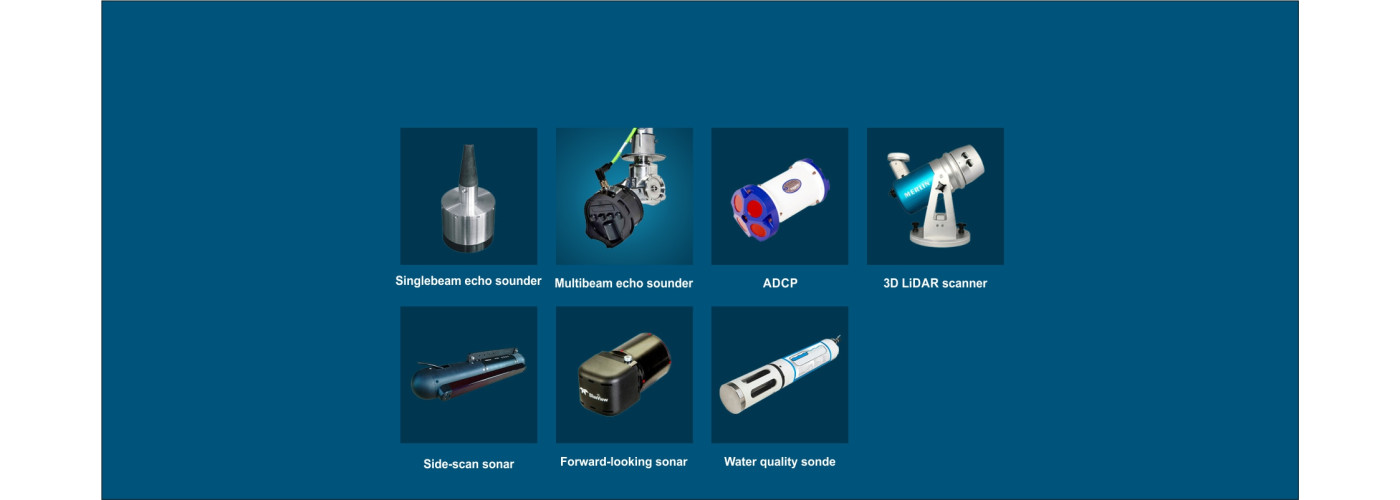

    Dedicated for small-size multibeam sonars
    The ME120 USV is dedicated to multibeam sonars, side scan sonars, and other survey instruments of a relatively smaller size.
    Buy Now

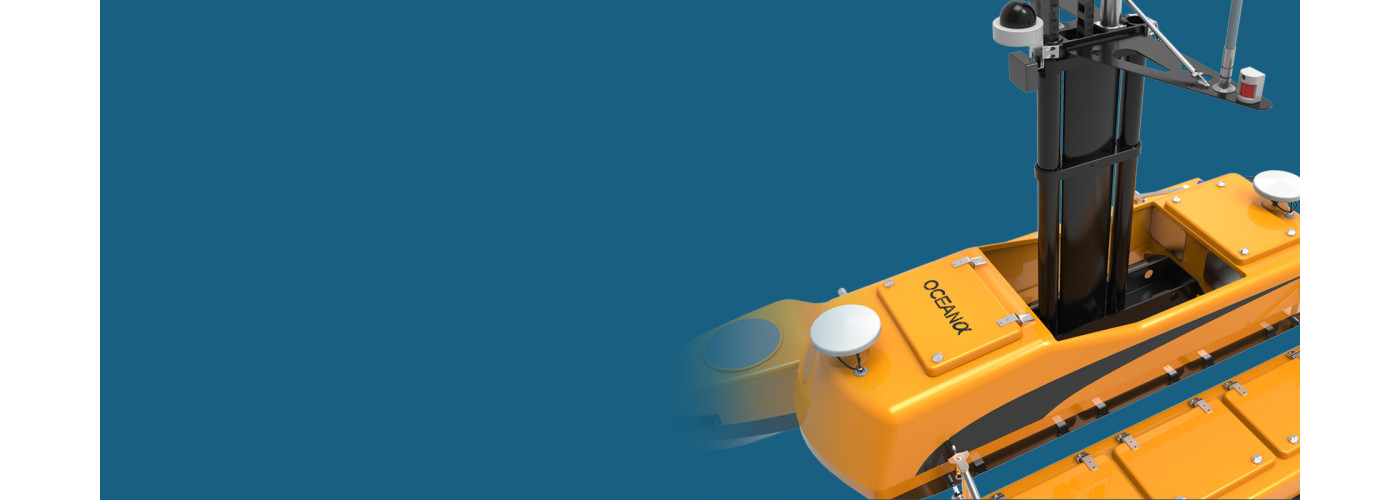

    Replaceable equipment cabin
    The payload cabin of the ME120 USV is replaceable, user can freely change and install different instruments according to mission requirements.
    Buy Now
    Automatic mission planning
    • User can pre-program the survey mission with the base station on the bank. The USV and instruments can conduct surveys autonomously and send back real-time data.
    • User can pre-program the survey mission with the base station on the bank. The USV and instruments can conduct surveys autonomously and send back real-time data.
    Buy Now
    Intelligent collision avoidance
    • The ME120 USV comes with ultrasonic sensors that can detect obstacles 40 meters ahead to avoid collision when in auto-pilot mode.
    • Operators can observe the water environment through a real-time video feed to better avoid obstacles when operating in manual mode.
    Buy Now
