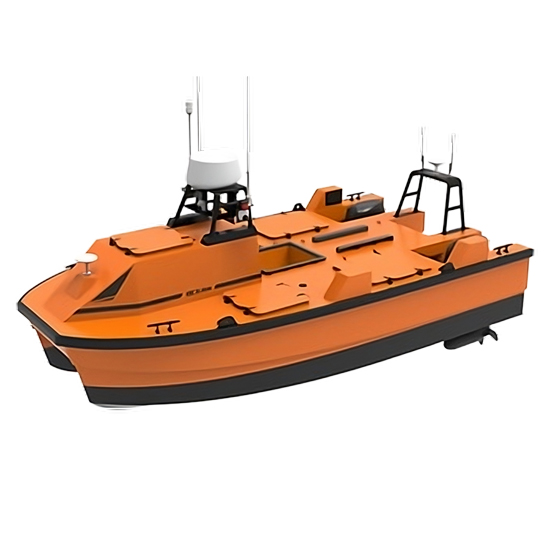

M 40P Long Endurance Multifunction USV

M 40P Long Endurance Multifunction USV
M 40P Long Endurance Multifunction USV
  • Stock: In Stock
  • Model: M 40P
  • Ex Tax:
  • Parameters
    Automatic Payload LifterYes
    Communication Range10 km
    Draft40 cm
    Endurance100h @4kn
    Multi MissionsYes
    Operation Sea StateSS 3
    Payload80 kg
    Survey Speed3-4 knots
    Video MonitoringYes
    Hull MaterialAluminum alloy
    Dimension(L)4.5 m *(W)2.33 m*1.9m(H)
    Weight1400 kg
    Max. Speed5 knots

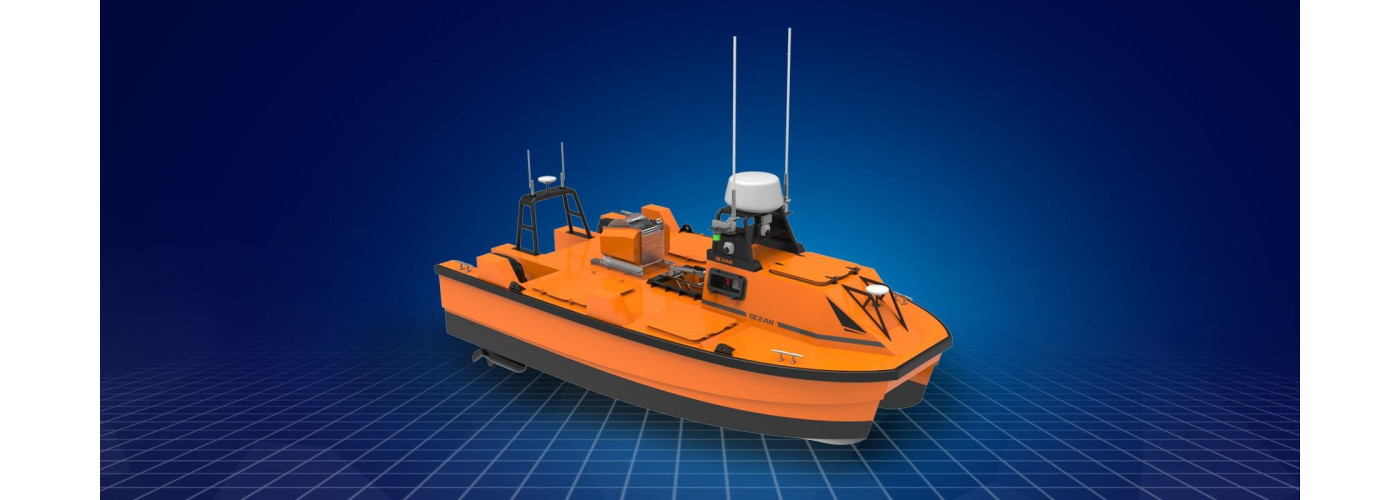

    Long Endurance Multi-Function USV
    M40P is a multi-purpose surveying unmanned surface vessel(USV) platform for estuary, on-shore, and off-shore applications. It’s designed to facilitate efficient data acquisition for construction planning and routine maintenance in the field of offshore wind farms and oil and gas exploration.
    Buy Now
    Universal Application

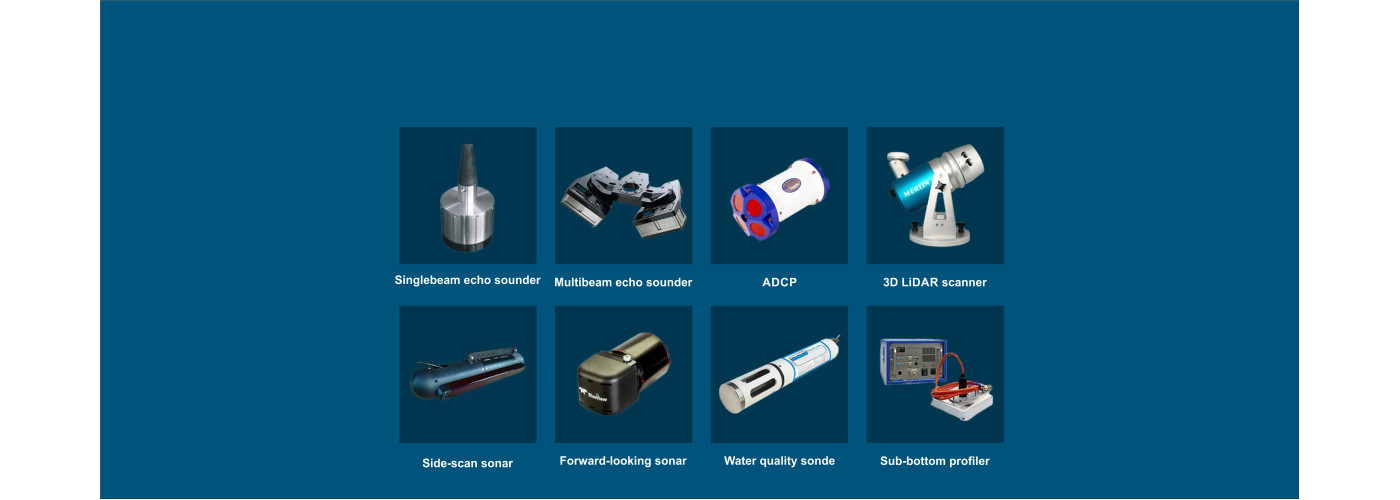

    The M40P can carry a wide range of equipment to conduct bathymetry, seabed mapping, and geological hazard inspection.
    Buy Now
    Autonomous Navigation
    Piloted by autonomous navigation algorithm, M40P can carry out round-clock inspection according to the preset route, greatly reduces the workload of and safety threats to personnel.
    Buy Now
    Superior Stability
    M40P’s unique hull catamaran design structure design provides exceptional performance even in turbulent waves, significantly reducing swaying and spray foam, providing a stable and quite working condition for acoustic equipment.
    Buy Now
    Quiet and Clean
    Powered by a diesel generator, the M40P has a single lifetime of up to 24 hours, while it can operate continuously for weeks by refueling. The generator can be turned off when surveying to provide a quiet and zero-emission operating environment for the equipment to guarantee data accuracy.
    Buy Now
    Exceptional Maneuverability
    The configuration of twin engines and twin propellers, combined with the catamaran shape, elevates its maneuverability when navigating closely around foundations constructions for zoom-in inspection. High-precision positioning and advanced navigation control algorithm minize risk of collision.
    Buy Now

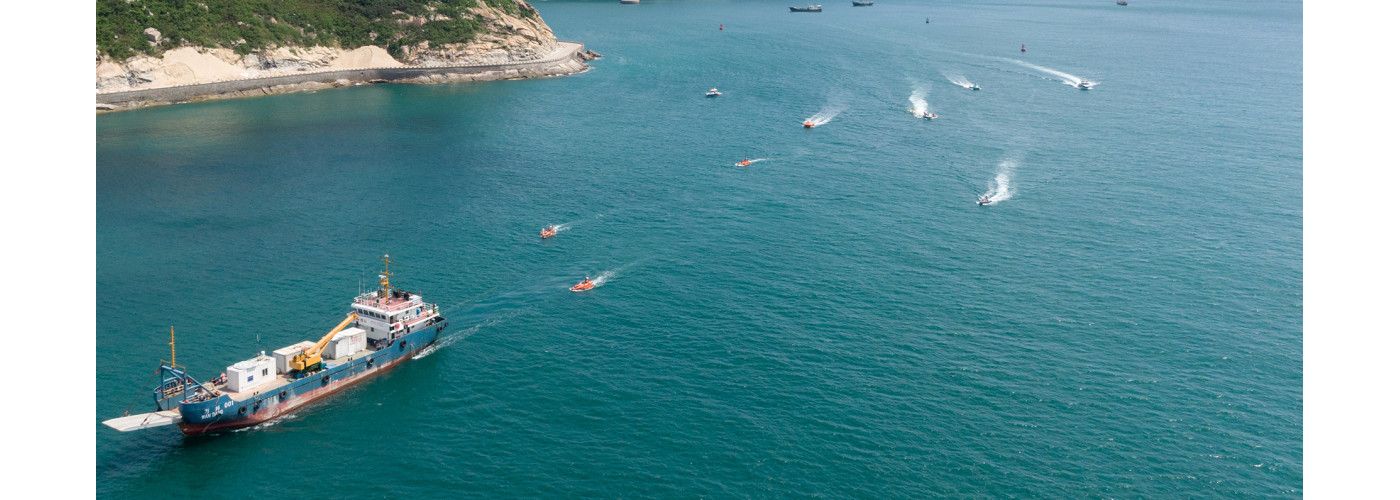

    Fleet Collaboration
    Multiple USVs can group up to form a fleet, navigating the same route while conducting varied inspections. The fleet can be piloted by one workstation to conduct a large scale investigation of different dimensions, significantly reducing labor costs and improving operational efficiency.
    Buy Now
