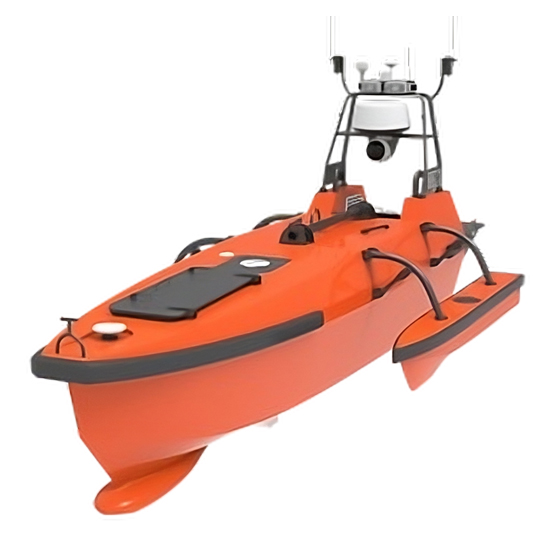

M 80 Autonomous Survey Boat

M 80 Autonomous Survey Boat
M 80 Autonomous Survey Boat
  • Stock: In Stock
  • Model: M 80
  • Ex Tax:
  • Parameters
    Automatic Payload LifterYes
    Collision Avoidance SystemMillimeter Wave Radar
    Communication Range >10 km
    Draft45 cm
    Endurance200 nm
    Multi MissionsYes
    Operation Sea StateSS 3
    Payload200 kg
    Video MonitoringYes
    Hull MaterialAluminum
    Dimension(L)5.65 m *(W)2.4 m *2.9m(H)
    Weight1600 kg
    PropulsionElectric Motor
    Max. Speed10 knots

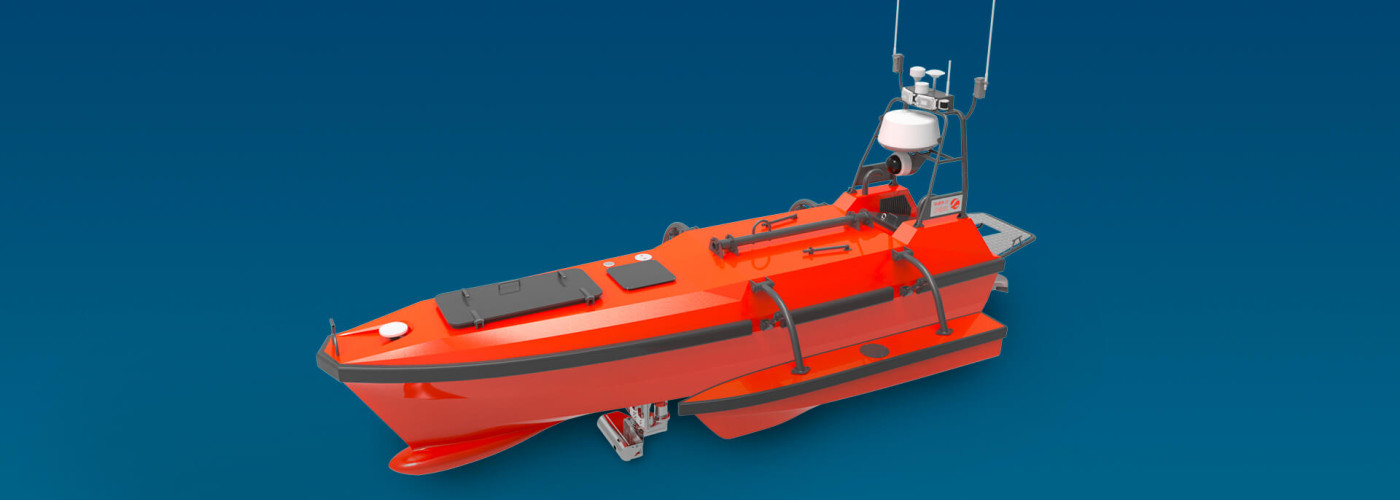

    Autonomous Survey Boat
    Long endurance multi-functional platform for hydrographic surveying
    Buy Now
    Large capacity for oceanographic survey instruments
    The M80 USV can carry up to 200kg of hydrographic & geophysical instruments to conduct multi- purposed hydrographic surveys on deep sea.
    Buy Now

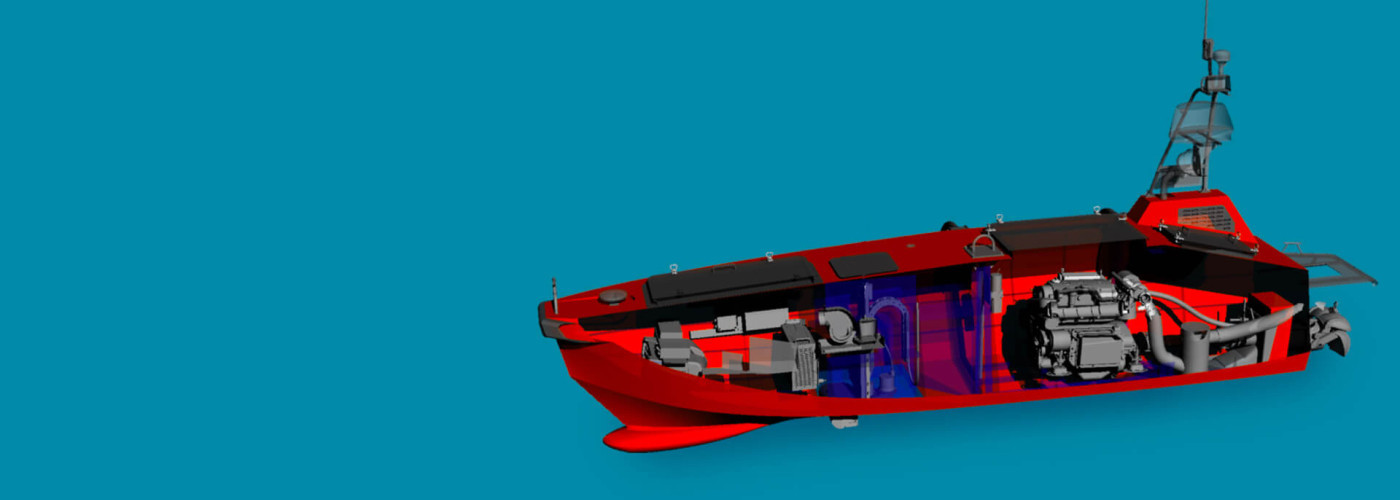

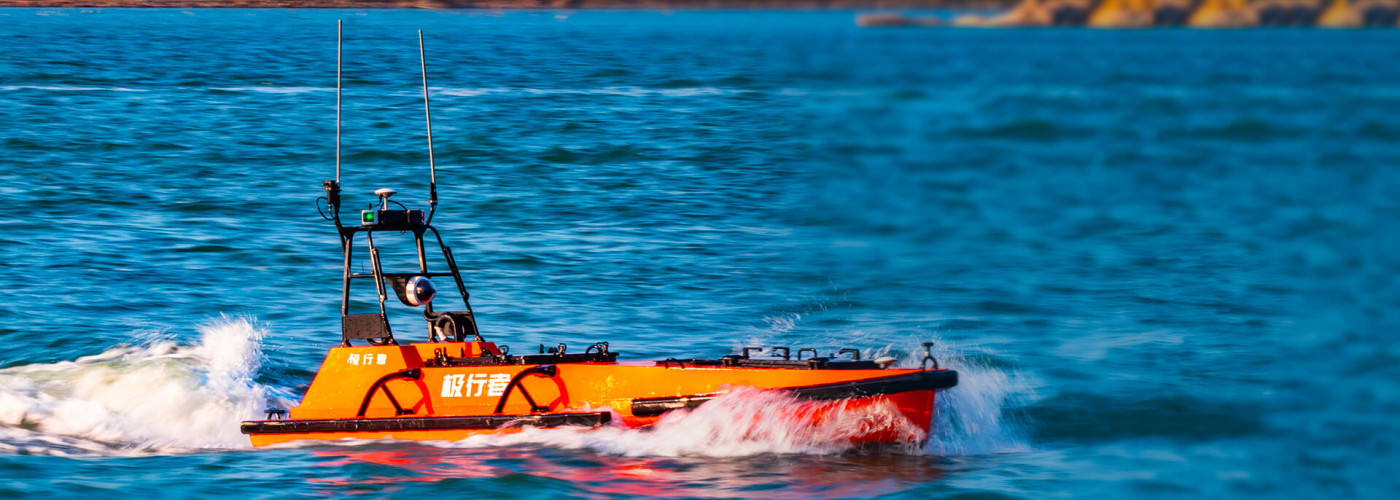

    Longer endurance, faster speed
    • The USV can sail 50 hours continuously with a 350 kg (gallon liter) fuel tank.
    • The USV can sail up to 12kn/s with a high power water-jet propeller
    Buy Now
    Better protection to equipment
    A build-in automatic lifter can lift and drop the instrument depending on whether the USV is sailing or surveying, which can protect transducers and save energy correspondingly.
    Buy Now

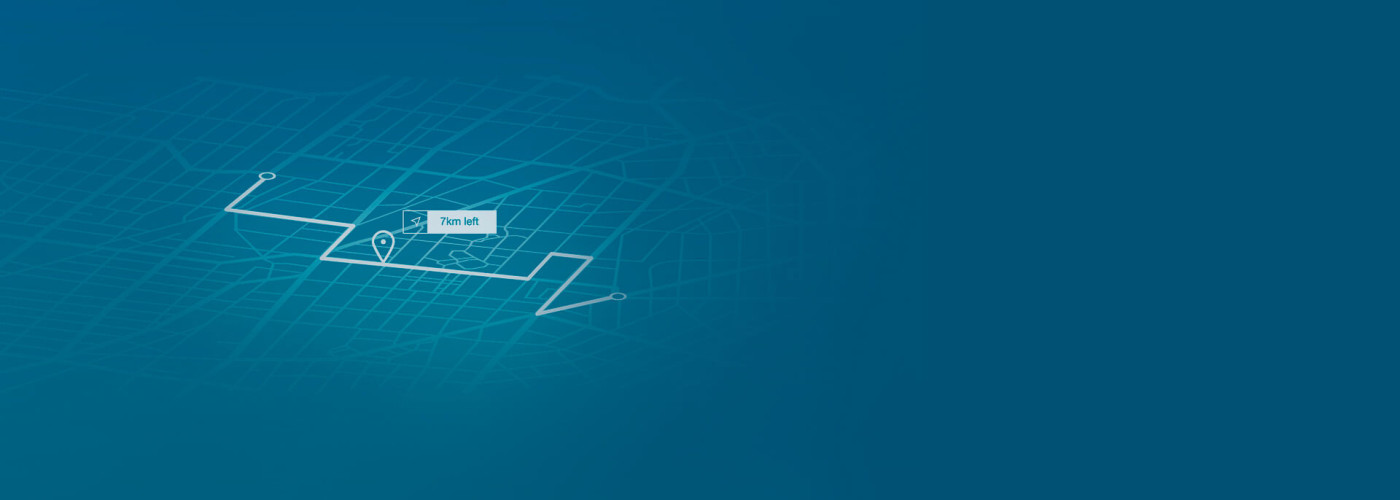

    Automatic multi-purpose survey
    • Both the USV and the survey instruments are operated by the base station. Navigated by the GNSS positioning system, the USV can autonomously conduct pre-programmed multi-purpose surveying missions and send back data in real-time.
    • Operators can also control the USV manually within a distant of 2 km by using a remote controller.
    Buy Now

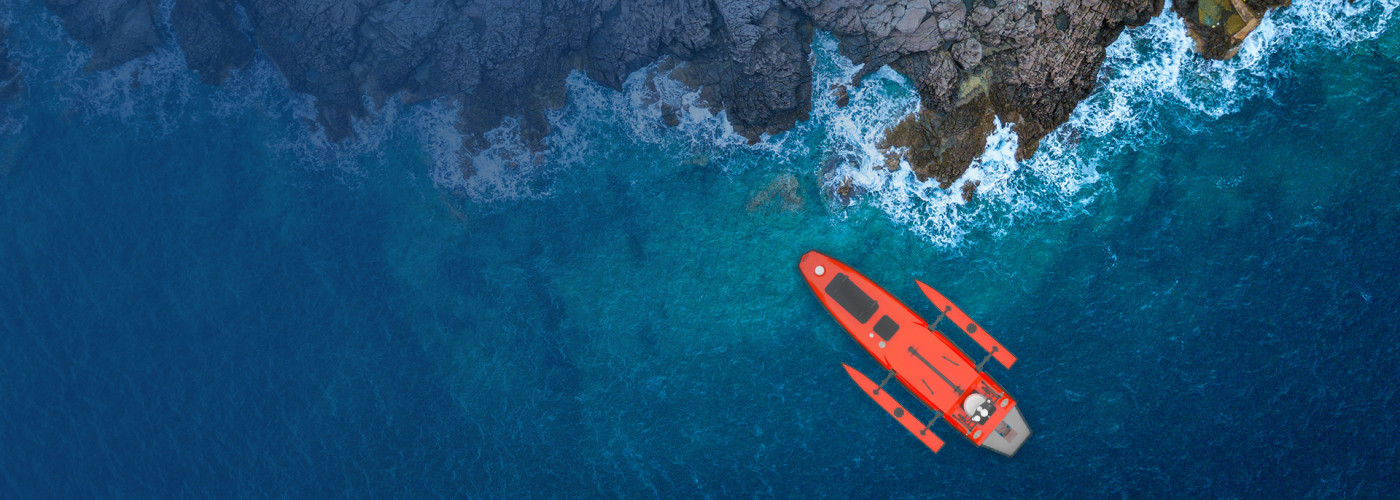

    Intelligent collision avoidance
    Deployed with a 4G radar, an HD camera and a LiDAR, the M80 USV gives an excellence performance in collision avoidance.

    User can observe water environments using the real-time video feed to better avoid obstacles when operating in manual mode.
    Buy Now
